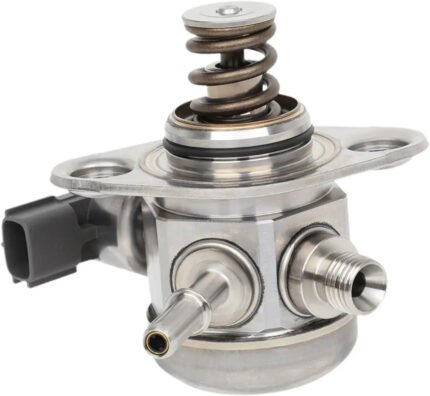

Car High Pressure Fuel Pump 166301KC0A Compatible For Nissan 2.0L MR20DD Qashqai
Car High Pressure Fuel Pump 166301KC0A Compatible For Nissan 2.0L MR20DD Qashqai £160.00
Back to products
Genuine Juke Qashqai MICRA CVT Automatic Gearbox JF015E Valve Body OEM Generation 1
Genuine Juke Qashqai MICRA CVT Automatic Gearbox JF015E Valve Body OEM Generation 1 £590.00
‎X

Mechatronic Unit Gear Box Accumulator Fix Kit Repair Leak Compatible With VW Volkswagen Audi Skoda SEAT DSG

£230.00

  • Compatible with following gearboxes: DSG 7 gearbox models 0AM 325 025 M Z1L 0AM 325 025 M Z2B 0AM 325 025 M Z2N 0AM 325 025 K Z6D 0AM 325 025 K Z6C 0AM 325 025 K Z6T
  • Associated part numbers: 0AM 927 769 D 0AM 927 769 K 0AM 927 769 G 0AM 325 025 D 0AM 325 025 H 0AM 325 065 N 0AM 325 025 J 0AM 325 065 L 0AM 325 065 S DQ200 DSG
  • The accumulator mounting within the DSG unit fails causing these faults Within the DSG Mechatronic unit, the hydraulic pump pushes oil through the filter towards the pressure accumulator which provides the system with oil pressure when the pump is switched off.
  • The cast metal part that the accumulator seats in to is too thin for the pressure exerted, this causes this part to crack and for the system to lose pressure causing the mechatronic unit to fail. To replace the cast metal part is a very time-consuming job and would only fail again in future.
  • Our unique repair kit allows you to repair the failed cast block. Our accumulator base mounts to the cast block restoring full function, our improved design accumulator simply then screws in place, providing a full-term repair for this common fault. For some types of transmission, the repair is possible in situ – even if this isn’t possible and the unit has to be removed, our repair is still far simpler than replacing the cast block which requires complete disassembly of the Mechatronic unit.
Your order qualifies for free shipping!
Compare
Add to wishlist
SKU: B086DRN4PW Categories: ,
Description

Product Description

ABOUT US

X8R Ltd is a British company completely dedicated to providing high quality improved design vehicle components; correcting original design faults. We take the common faults associated with a variety of vehicle parts and re-design parts that will not fail again or that will prevent damage to vehicles.

SYMPTOMS OF FAULT

VW 06079 GENERIC P17BF. VAG 006079/10902/10903, P17BF, Hydraulic pump – play protection. VW 06300 GENERIC P189C. VAG 006300, P189C, Function restriction due to insufficient pressure build-up.P1895, Reduced function because of pressure drop. Loss of power (gone into neutral), no gears can be selected, hydraulic pump runs constantly, you can see hydraulic fluid bubbling/rising out of the breather, flashing spanner icon where gear number usually shows.

broken dsg

THE FAULT

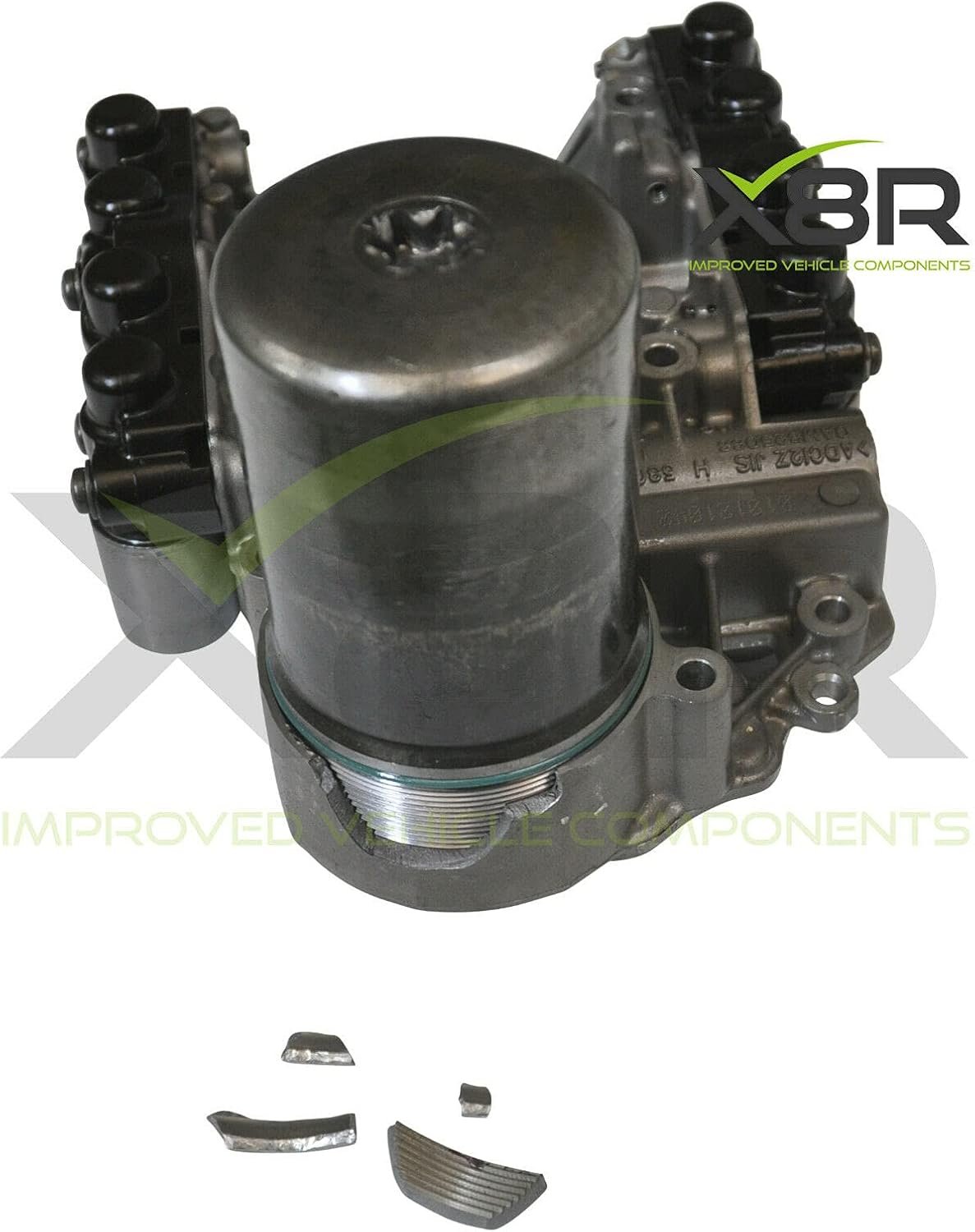

The accumulator mounting within the DSG unit fails causing these faults

Within the DSG Mechatronic unit, the hydraulic pump pushes oil through the filter towards the pressure accumulator which provides the system with oil pressure when the pump is switched off.

The cast metal part that the accumulator seats in to is too thin for the pressure exerted, this causes this part to crack and for the system to lose pressure causing the mechatronic unit to fail.

To replace the cast metal part is a very time-consuming job and would only fail again in future.

new unit

THE SOLUTION

Our unique design repair restores full function to the DSG unit

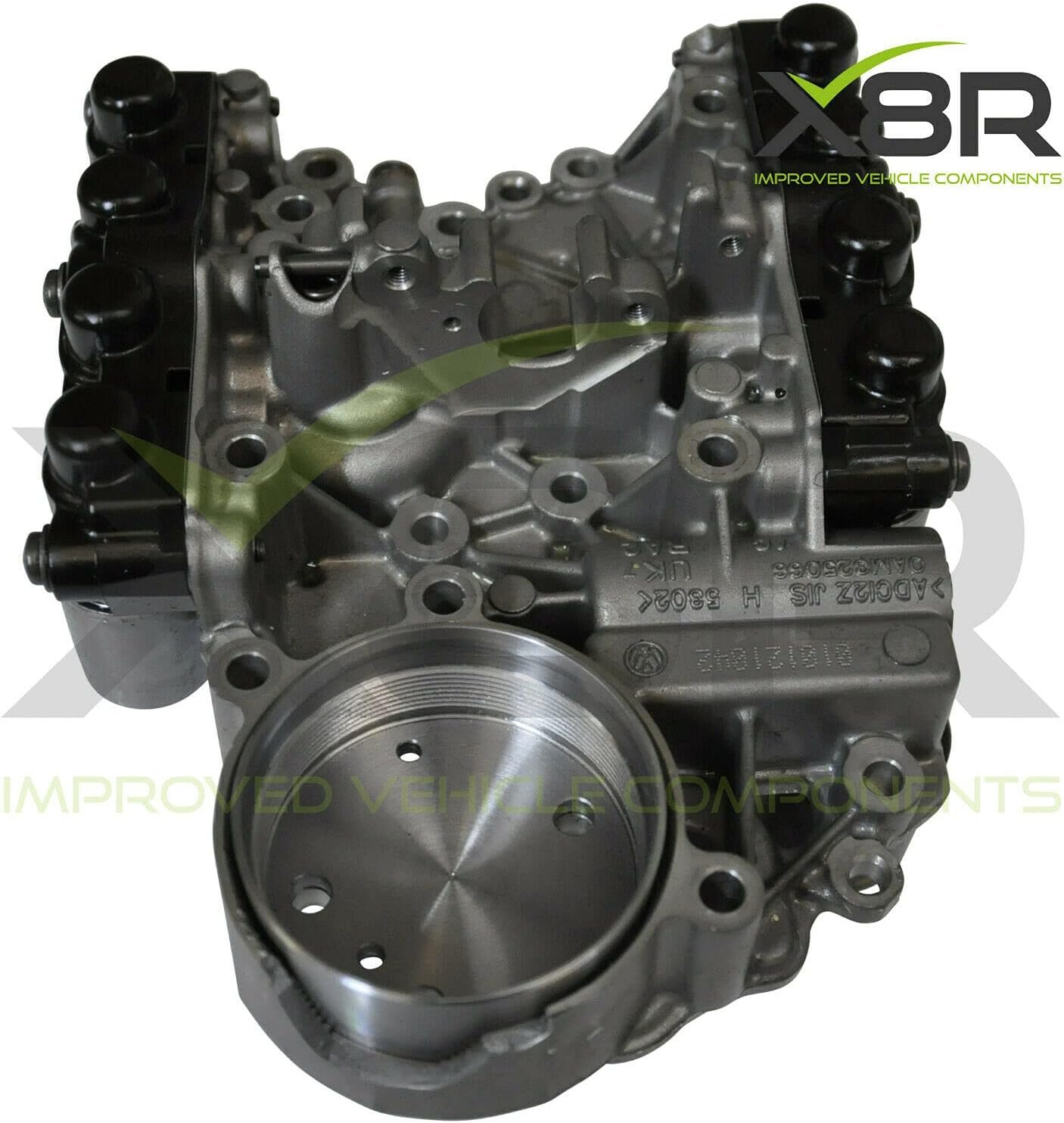

Our unique repair kit allows you to repair the failed cast block. Our accumulator base mounts to the cast block restoring full function, our improved design accumulator simply then screws in place, providing a full-term repair for this common fault.

For some types of transmission, the repair is possible in situ – provided the mechatronic sump can be removed in situ. Even if this isn’t possible and the unit has to be removed our repair is still far simpler than replacing the cast block which requires complete disassembly of the Mechatronic unit.

No programming is required pre or post installation. After the repair, pressure is restored and normal operation resumes.

replacement dsg

VEHICLES AFFECTED

The below is for guidance only, please check before buying that you have a DSG 7 speed gearbox, any doubts let us know your VIN before purchase and we can look up to be sure.

Compatible with following gearboxes: DSG 7 gearbox models

0AM 325 025 M Z1L, 0AM 325 025 M Z2B, 0AM 325 025 M Z2N, 0AM 325 025 K Z6D, 0AM 325 025 K Z6C, 0AM 325 025 K Z6T

Associated part numbers:

0AM 927 769 D, 0AM 927 769 K, 0AM 927 769 G, 0AM 325 025 D, 0AM 325 025 H, 0AM 325 065 N, 0AM 325 025 J, 0AM 325 065 L, 0AM 325 065 S

DQ200 DSG

dsg kit

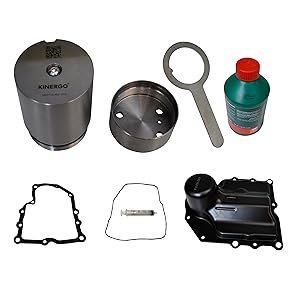

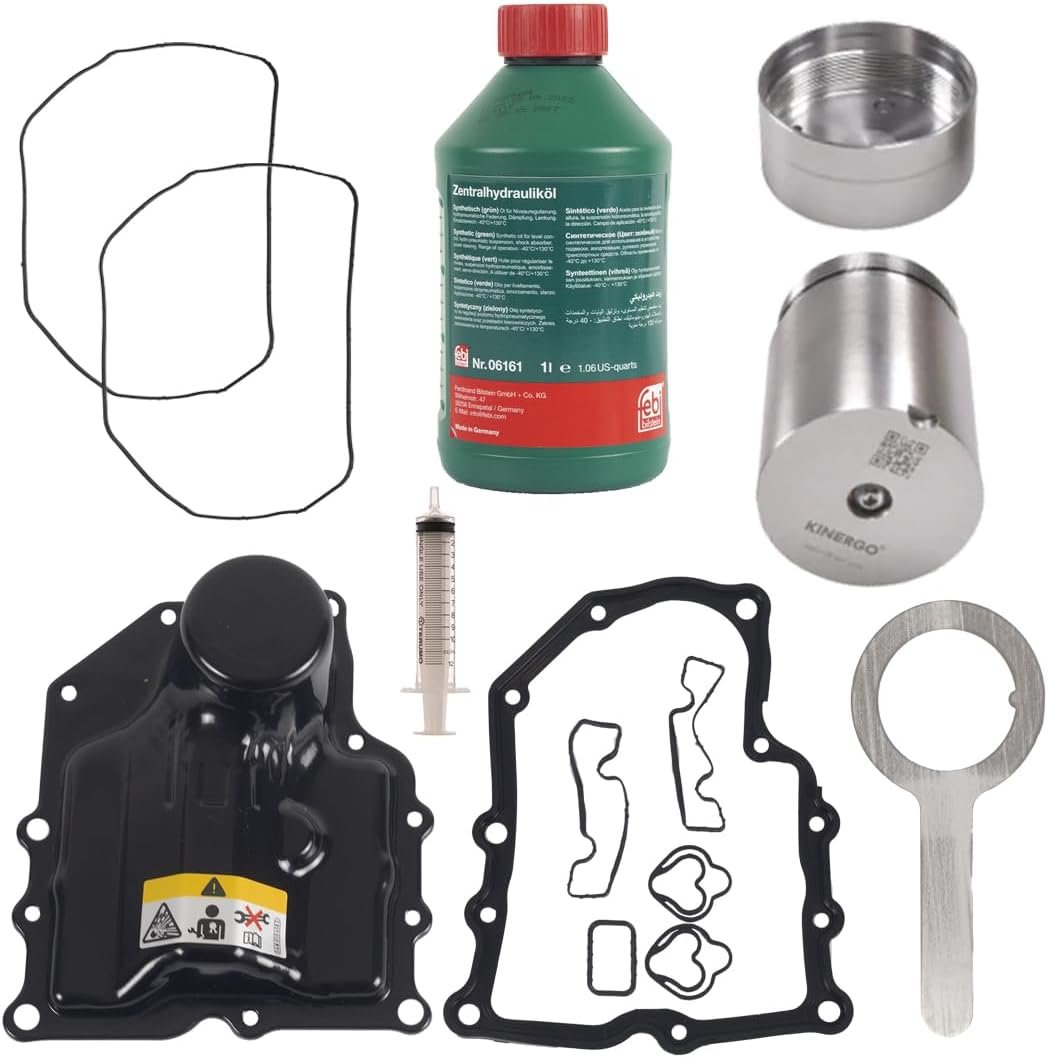

YOU WILL RECEIVE

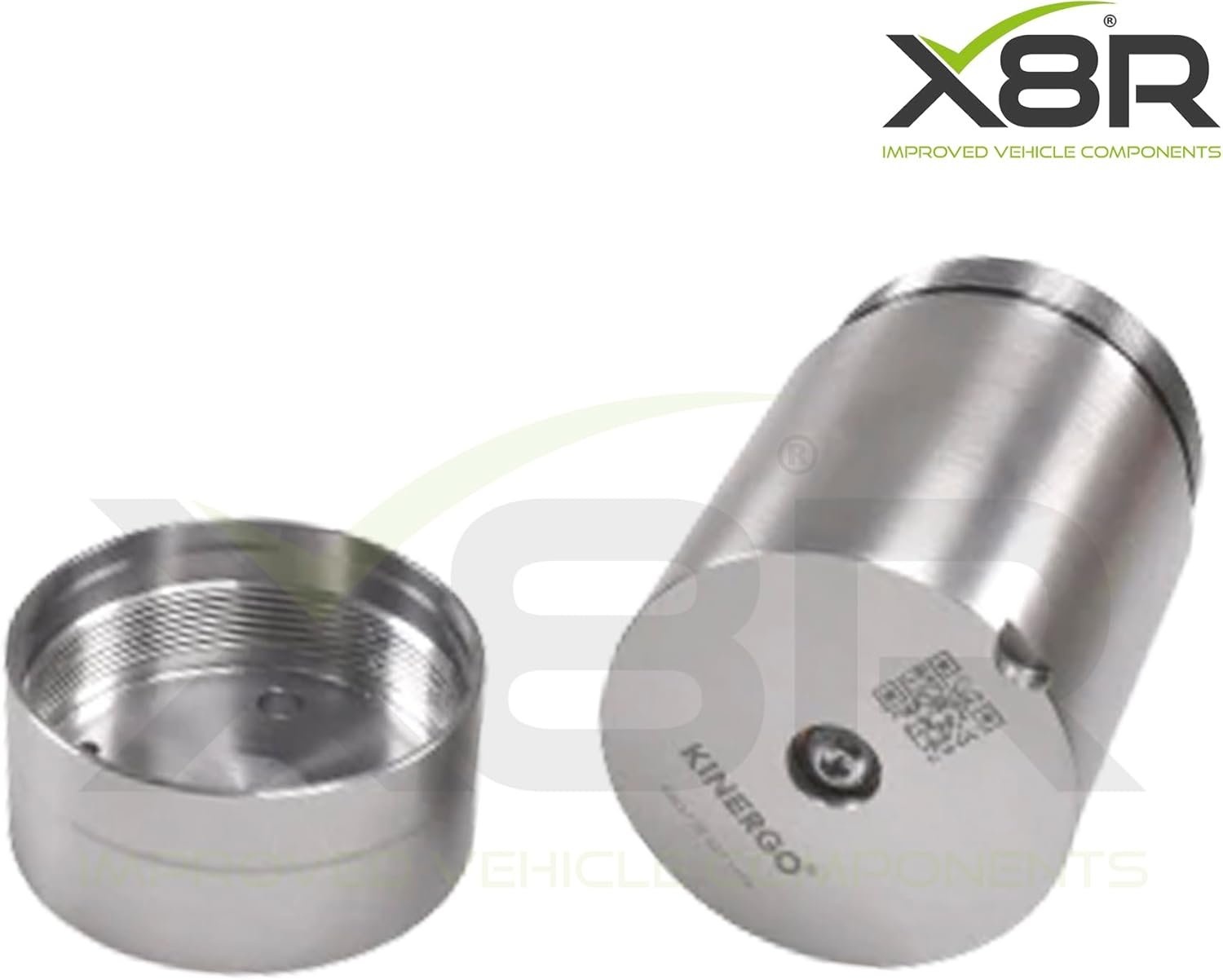

1 x Replacement accumulator (complete with o ring)

1 x Accumulator housing / cast block adapter (complete with o ring)

1x Accumulator spanner.

1x Mechatronic unit sump gasket

1x Mechatronic unit to gearbox gasket

1x Syringe to refill Mechatronic unit with hydraulic fluid (through vent)

1x 1ltr Hydraulic fluid to refill Mechatronic unit

1x Replacement sump for the Mechatronic unit

Additional information
Brand

Manufacturer reference

‎X8R0186
Manufacturer part number

‎X8R0186
ASIN

B086DRN4PW
Date First Available

1 Feb. 2020
Manufacturer

‎X8R LTD
